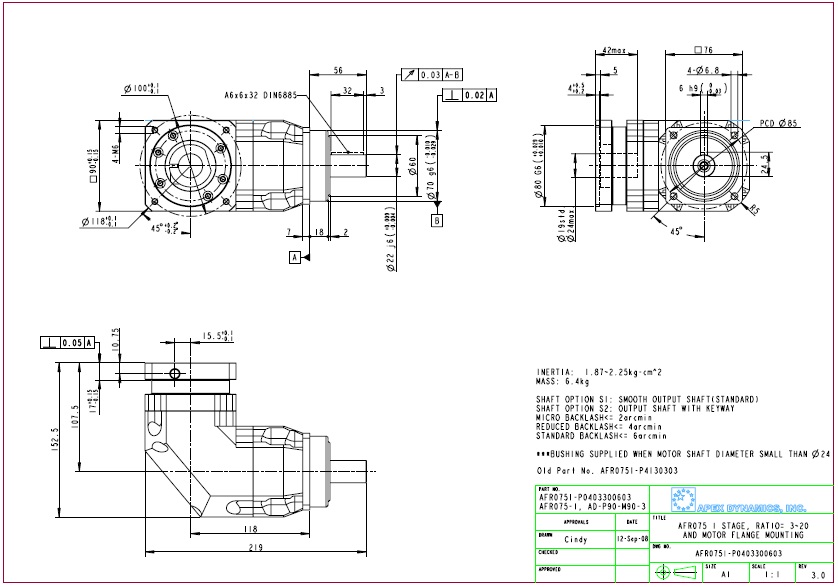

1. AFR075 1단 감속기 외형도.

AFR075 시리즈 1단 감속기 외형도.

AFR075 시리즈 외형도 및 카다로그(AFR075-(감속비율)-S2-P2

감속기모델명:  AFR075-003-S2-P2,AFR075-004-S2-P2,AFR075-005-S2-P2,AFR075-006-S2-P2,AFR075-007-S2-P2,AFR075-008-S2-P2,
                     AFR075-009-S2-P2,AFR075-010-S2-P2,

1. PDF

2. DXF(2D)

3. STP(3D)

4. IGS(3D)

4. AF 카다로그

서보모터

  SERVO MOTOR MODEL명(미쓰비시 제품)

MR-J4 시리즈

  HG-KR73, HG-KR73B, HG-MR73, HG-MR73B, HG-SR52, HG-SR52B, HG-SR102, HG-SR102B

MR-J3 시리즈

 HF-KP73, HF-KP73B, HF-MP73, HF-MP73B, HF-SP52, HF-SP52B, HF-SP102, HF-SP102B

MR-J2S 시리즈

 HC-KFS73, HC-KFS73B, HC-MFS73, HC-MFS73B, HC-SFS52, HC-SFS52B, HC-SFS102, HC-SFS102B

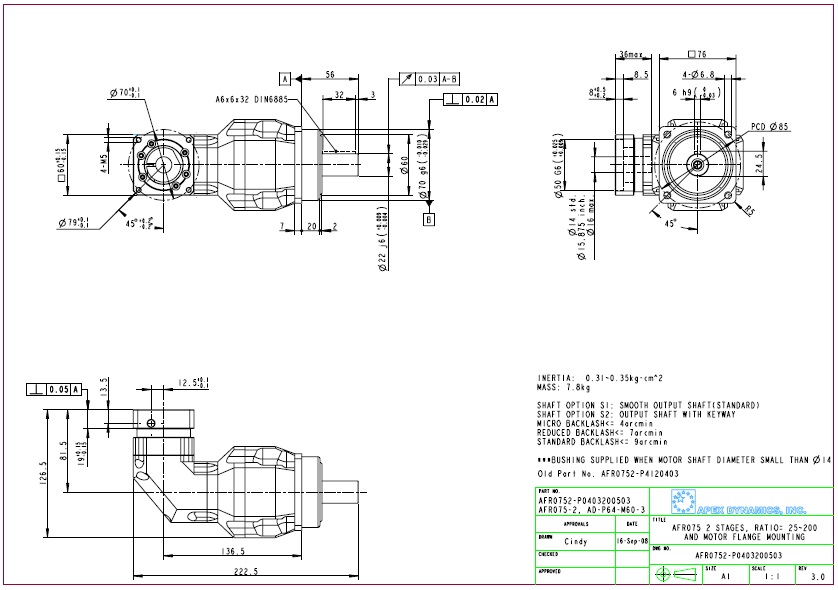

    2. AFR075 2단 감속기 외형도.
AFR075 시리즈 2단 감속기 외형도.

AFR075 시리즈 외형도 및 카다로그(AFR075-(감속비율)-S2-P2

감속기모델명:  AFR075-015-S2-P2,AFR075-020-S2-P2,AFR075-025-S2-P2,AFR075-030-S2-P2,AFR075-035-S2-P2,AFR075-040-S2-P2,
                     AFR075-045-S2-P2,AFR075-050-S2-P2,AFR075-060-S2-P2,AFR075-070-S2-P2,AFR075-080-S2-P2,AFR075-090-S2-P2,
                     AFR075-100-S2-P2

1. PDF

2. DXF(2D)

3. STP(3D)

4. IGS(3D)

5. AF 카다로그

서보모터

  SERVO MOTOR MODEL명(미쓰비시 제품)

MR-J4 시리즈

 HG-KR23, HG-KR23B, HG-MR23, HG-MR23B, HG-KR43, HG-KR43B, HG-MR43, HG-MR43B
 HG-KR73, HG-KR73B, HG-MR73, HG-MR73B, HG-SR52, HG-SR52B, HG-SR102, HG-SR102B

MR-J3 시리즈

 HF-KP23, HF-KP23B, HF-MP23, HF-MP23B, HF-KP43, HF-KP43B, HF-MP43, HF-MP43B
 HF-KP73, HF-KP73B, HF-MP73, HF-MP73B, HF-SP52, HF-SP52B, HF-SP102, HF-SP102B

MR-J2S 시리즈

 HC-KFS23, HC-KFS23B, HC-MFS23, HC-MFS23B, HC-KFS43, HC-KFS43B, HC-MFS43, HC-MFS43B
 HC-KFS73, HC-KFS73B, HC-MFS73, HC-MFS73B, HC-SFS52, HC-SFS52B, HC-SFS102, HC-SFS102B
    3. AF 시리즈 감속기 SPEC.

AF 감속기 1단 SPEC.
AF 감속기 SPEC.
