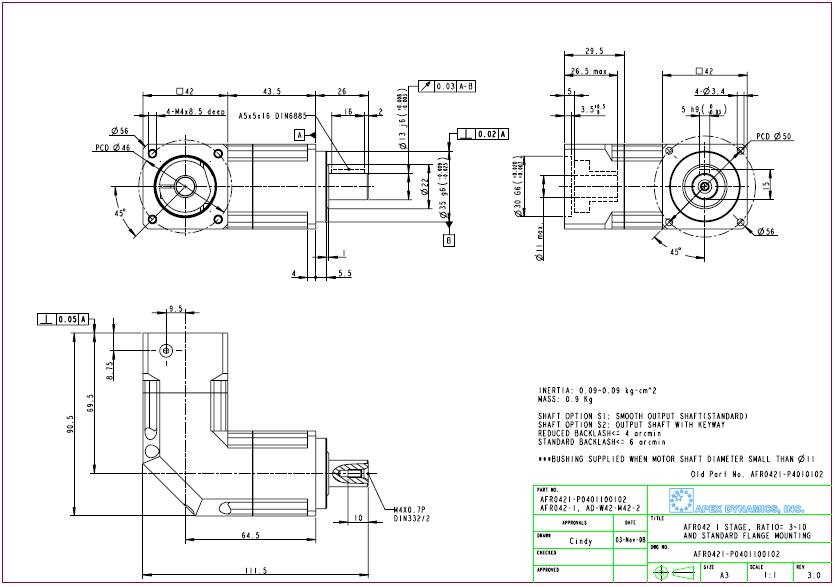

AFR042 시리즈 외형도 및 카다로그(AFR042-(감속비율)-S2-P2

감속기모델명:  AFR042-003-S2-P2,AFR042-004-S2-P2,AFR042-005-S2-P2,AFR042-006-S2-P2,AFR042-007-S2-P2,AFR042-008-S2-P2,
                     AFR042-009-S2-P2,AFR042-010-S2-P2,

1. PDF

2. DXF(2D)

3. STP(3D)

4. IGS(3D)

4. AF 카다로그

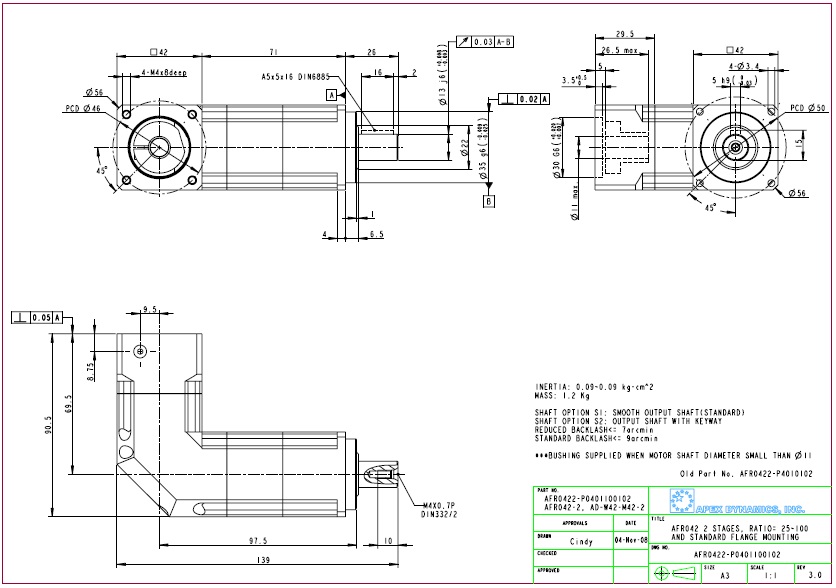

AFR042 시리즈 외형도 및 카다로그(AFR042-(감속비율)-S2-P2

감속기모델명:  AFR042-015-S2-P2,AFR042-020-S2-P2,AFR042-025-S2-P2,AFR042-030-S2-P2,AFR042-035-S2-P2,AFR042-040-S2-P2,
                     AFR042-045-S2-P2,AFR042-050-S2-P2,AFR042-060-S2-P2,AFR042-070-S2-P2,AFR042-080-S2-P2,AFR042-090-S2-P2,
                     AFR042-100-S2-P2

1. PDF

2. DXF(2D)

3. STP(3D)

4. IGS(3D)

5. AF 카다로그
