서보모터용 감속기 ABR142 감속기

이 부분은 iframe 대응의 브라우저로 봐 주세요.

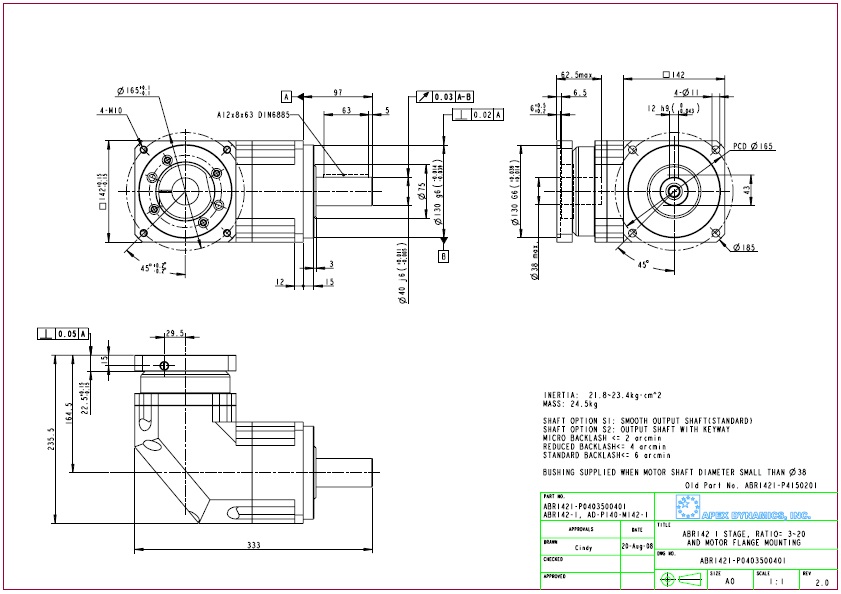

1. ABR142 1단 감속기 외형도.

ABR142 시리즈 1단 감속기 외형도.

ABR142 시리즈 외형도 및 카다로그(ABR142-(감속비율)-S2-P2

감속기모델명: ABR142-003-S2-P2,ABR142-004-S2-P2,ABR142-005-S2-P2,ABR142-006-S2-P2,ABR142-007-S2-P2,ABR142-008-S2-P2,ABR142-009-S2-P2,ABR142-010-S2-P2,ABR142-014-S2-P2,ABR142-020-S2-P2

1. PDF

2. DXF(2D)

3. STP(3D)

4. IGS(3D)

4. AB/ABR 카다로그

서보모터	SERVO MOTOR MODEL명(미쓰비시 제품)
MR-J4 시리즈	HG-SR202, HG-SR202B, HG-SR352, HG-SR352B, HG-SR502, HG-SR502B, HG-SR702, HG-SR702B
MR-J3 시리즈	HF-SP202, HF-SP202B, HF-SP352, HF-SP352B, HF-SP502, HF-SP502B, HF-SP702, HF-SP702B
MR-J2S 시리즈	HC-SFS202, HC-SFS202B, HC-SFS352, HC-SFS352B, HC-SFS502, HC-SFS502B, HC-SFS702, HC-SFS702B

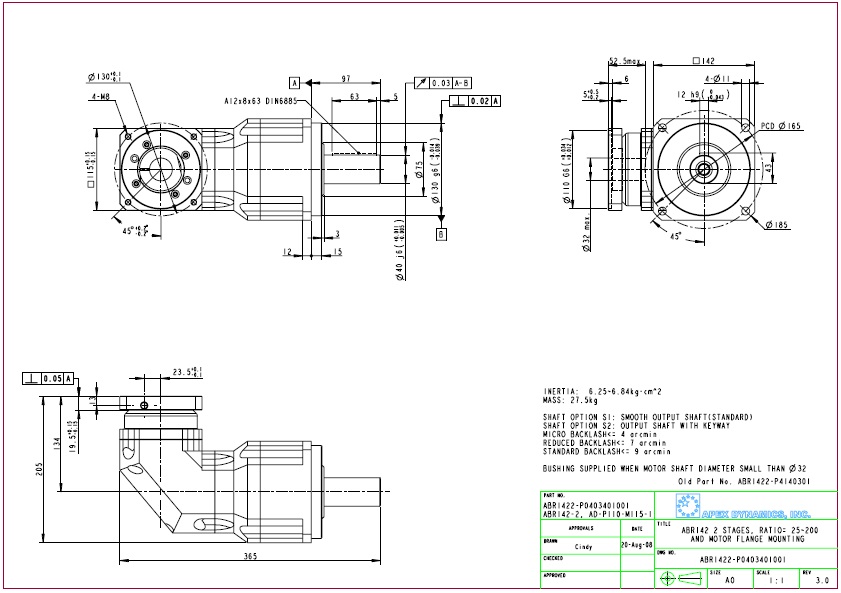

2. ABR142 2단 감속기 외형도.

ABR142 시리즈 외형도 및 카다로그(ABR142-(감속비율)-S2-P2

감속기모델명: ABR142-015-S2-P2,ABR142-020-S2-P2,ABR142-025-S2-P2,ABR142-030-S2-P2,ABR142-035-S2-P2,ABR142-040-S2-P2,ABR142-045-S2-P2,ABR142-050-S2-P2,ABR142-060-S2-P2,ABR142-070-S2-P2,ABR142-080-S2-P2,ABR142-090-S2-P2,ABR142-100-S2-P2

1. PDF

2. DXF(2D)

3. STP(3D)

4. IGS(3D)

5. AB/ABR 카다로그

서보모터	SERVO MOTOR MODEL명(미쓰비시 제품)
MR-J4 시리즈	HG-SR52, HG-SR52B, HG-SR102, HG-SR102B, HG-SR152, HG-SR152B HG-SR202, HG-SR202B, HG-SR352, HG-SR352B, HG-SR502, HG-SR502B, HG-SR702, HG-SR702B
MR-J3 시리즈	HF-SP52, HF-SP52B, HF-SP102, HF-SP102B, HF-SP152, HF-SP152B HF-SP202, HF-SP202B, HF-SP352, HF-SP352B, HF-SP502, HF-SP502B, HF-SP702, HF-SP702B
MR-J2S 시리즈	HC-SFS52, HC-SFS52B, HC-SFS102, HC-SFS102B, HC-SFS152, HC-SFS152B HC-SFS202, HC-SFS202B, HC-SFS352, HC-SFS352B, HC-SFS502, HC-SFS502B, HC-SFS702, HC-SFS702B

3. ABR 시리즈 감속기 SPEC.

APEX ABR감속기 SPEC.
