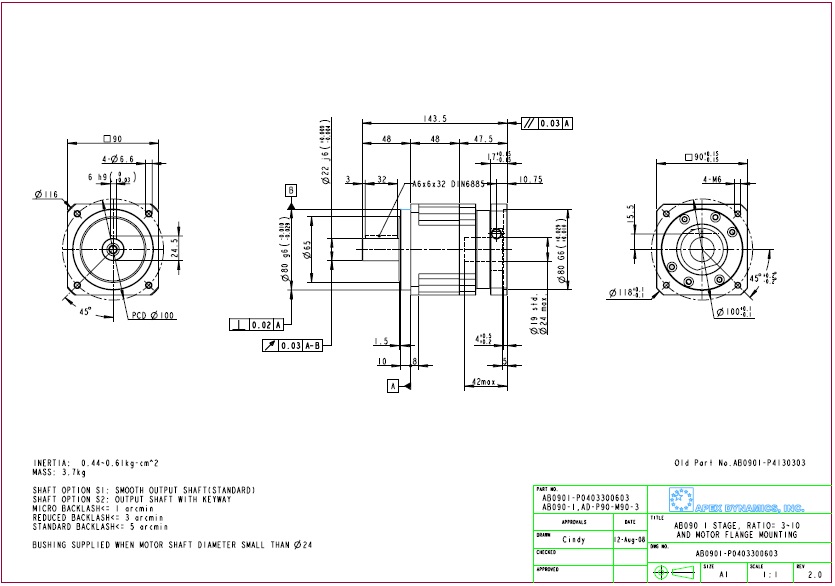

1. AB090 1단 감속기 외형도.

AB090 시리즈 1단 감속기 외형도.

AB090 시리즈 외형도 및 카다로그(AB090-(감속비율)-S2-P2

감속기모델명:  AB090-003-S2-P2,AB090-004-S2-P2,AB090-005-S2-P2,AB090-006-S2-P2,AB090-007-S2-P2,AB090-008-S2-P2,AB090-009-S2-P2,
                     AB090-010-S2-P2,

1. PDF

2. DXF(2D)

3. STP(3D)

4. IGS(3D)

4. AB 카다로그

서보모터

  SERVO MOTOR MODEL명(미쓰비시 제품)

MR-J4 시리즈

  HG-KR73, HG-KR73B, HG-MR73, HG-MR73B, HG-SR52, HG-SR52B, HG-SR102, HG-SR102B

MR-J3 시리즈

 HF-KP73, HF-KP73B, HF-MP73, HF-MP73B, HF-SP52, HF-SP52B, HF-SP102, HF-SP102B

MR-J2S 시리즈

 HC-KFS73, HC-KFS73B, HC-MFS73, HC-MFS73B, HC-SFS52, HC-SFS52B, HC-SFS102, HC-SFS102B

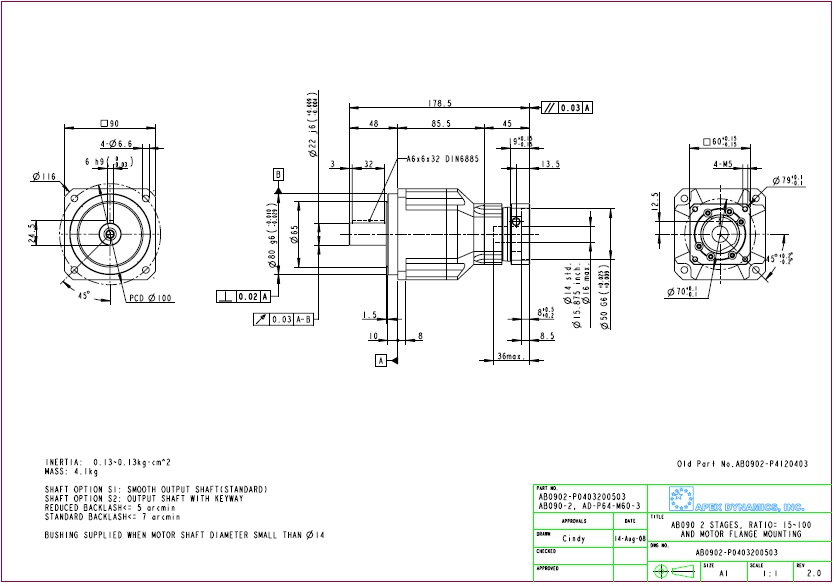

    2. AB090 2단 감속기 외형도.
AB090 시리즈 2단 감속기 외형도.

AB090 시리즈 외형도 및 카다로그(AB090-(감속비율)-S2-P2

감속기모델명:  AB090-015-S2-P2,AB090-020-S2-P2,AB090-025-S2-P2,AB090-030-S2-P2,AB090-035-S2-P2,AB090-040-S2-P2,AB090-045-S2-P2,
                     AB090-050-S2-P2,AB090-060-S2-P2,AB090-070-S2-P2,AB090-080-S2-P2,AB090-090-S2-P2,AB090-100-S2-P2

1. PDF

2. DXF(2D)

3. STP(3D)

4. IGS(3D)

5. AB 카다로그

서보모터

  SERVO MOTOR MODEL명(미쓰비시 제품)

MR-J4 시리즈

 HG-KR23, HG-KR23B, HG-MR23, HG-MR23B, HG-KR43, HG-KR43B, HG-MR43, HG-MR43B
 HG-KR73, HG-KR73B, HG-MR73, HG-MR73B, HG-SR52, HG-SR52B, HG-SR102, HG-SR102B

MR-J3 시리즈

 HF-KP23, HF-KP23B, HF-MP23, HF-MP23B, HF-KP43, HF-KP43B, HF-MP43, HF-MP43B
 HF-KP73, HF-KP73B, HF-MP73, HF-MP73B, HF-SP52, HF-SP52B, HF-SP102, HF-SP102B

MR-J2S 시리즈

 HC-KFS23, HC-KFS23B, HC-MFS23, HC-MFS23B, HC-KFS43, HC-KFS43B, HC-MFS43, HC-MFS43B
 HC-KFS73, HC-KFS73B, HC-MFS73, HC-MFS73B, HC-SFS52, HC-SFS52B, HC-SFS102, HC-SFS102B

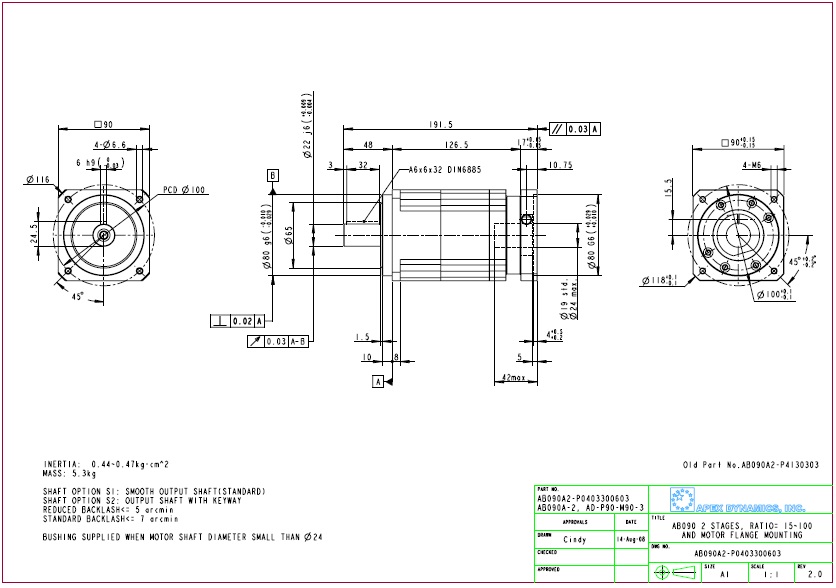

    3. AB090A 2단 감속기 외형도.
AB090 시리즈 2단 감속기 외형도.

AB090A 시리즈 외형도 및 카다로그(AB090A-(감속비율)-S2-P2

감속기모델명:  AB090A-015-S2-P2,AB090A-020-S2-P2,AB090A-025-S2-P2,AB090A-030-S2-P2,AB090A-035-S2-P2,AB090A-040-S2-P2,AB090A-045-S2-P2,AB090A-050-S2-P2,AB090A-060-S2-P2,AB090A-070-S2-P2,AB090A-080-S2-P2,AB090A-090-S2-P2,AB090A-100-S2-P2

1. PDF

2. DXF(2D)

3. STP(3D)

4. IGS(3D)

5. AB 카다로그

서보모터

  SERVO MOTOR MODEL명(미쓰비시 제품)

MR-J4 시리즈

  HG-KR73, HG-KR73B, HG-MR73, HG-MR73B, HG-SR52, HG-SR52B, HG-SR102, HG-SR102B

MR-J3 시리즈

  HF-KP73, HF-KP73B, HF-MP73, HF-MP73B, HF-SP52, HF-SP52B, HF-SP102, HF-SP102B

MR-J2S 시리즈

  HC-KFS73, HC-KFS73B, HC-MFS73, HC-MFS73B, HC-SFS52, HC-SFS52B, HC-SFS102, HC-SFS102B

    4. AB 시리즈 감속기 SPEC.

AB 감속기 1단 SPEC.
AB 감속기 2단 SPEC.
